Excavator Bucket Pin Size Chart All Makes & Models
[/vc_column_text][vc_column_text]Excavator bucket pin dimensions vary between excavator make and models. This makes it complex to build or fix a mount for an excavator.

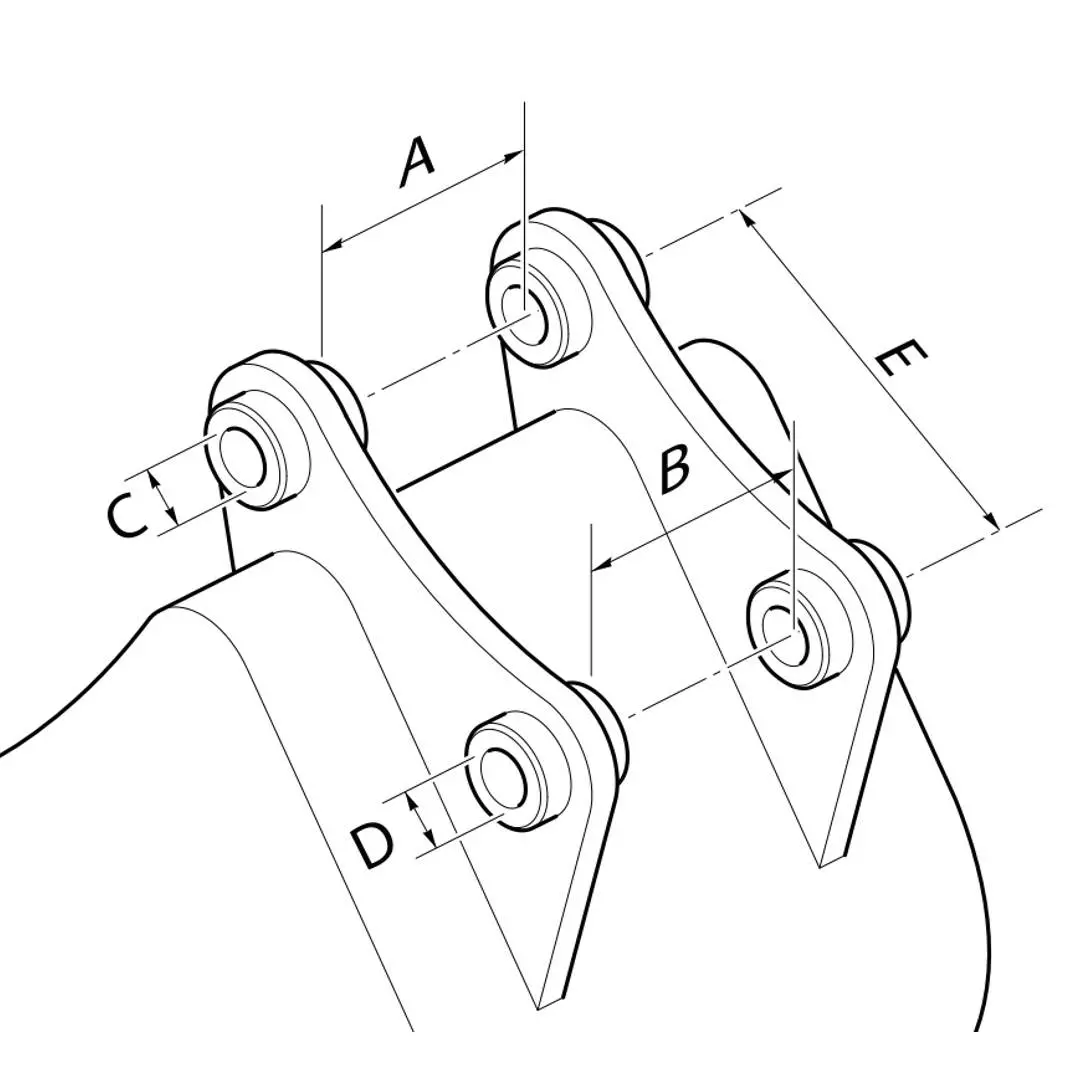

Most excavators have a double pin configuration with two round pins. The measurements that are needed (shows below) to build a mounting bracket is the pin diameters (C & D), dipper/stick width (A & B) and center to center (E).[/vc_column_text][vc_single_image image=”3486″ img_size=”large” alignment=”center”][vc_btn title=”Download Bucket Pin Dimension Chart!” color=”black” size=”lg” align=”center” link=”url:https%3A%2F%2Fattachmentco1-dev.10web.site%2Fwp-content%2Fuploads%2F2023%2F02%2FExcavator-Machine-Specs-.xlsx||target:%20_blank|”][vc_separator][/vc_column][vc_column width=”1/3″][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][/vc_column][vc_column width=”1/3″][vc_column_text]
Our Extensive Guide to Excavator Mounting Options
[/vc_column_text][vc_single_image image=”3500″ img_size=”large” alignment=”center” onclick=”custom_link” img_link_target=”_blank” link=”https://attachmentco1-dev.10web.site/guide-to-excavator-mounts/”][/vc_column][vc_column width=”1/3″][/vc_column][/vc_row]
Can you tell me iof a bucket from a Cat 301 will fit a Komatsu PC15MR x1 ? Thank you
Hi Joe, it looks like the CAT 301 is going to have a narrower stick than the PC15 so I don’t think that the PC15 will fit in between the bosses on a bucket built for a CAT 301.
Hope this helps!
Andrew
The Attachment Co
looking for cat 390f bucket pin details, is it possible to get that?
Hi William,
I am not 100% sure, but I would think that they are the same as a 385 which has 130mm pins, 651mm stick width and 675mm centers. I would double check everything though to be sure.
Hope that helps!
Andrew
The Attachment Company
John Deere 310 SG bucket ears
Wondering if a bucket off of a Hyundai ZX220 will fit a Link Belt 160LX?
Hi Jared, a Hitachi ZX220 bucket on 80mm pins should fit a 160LX as it has 80mm pins and a slightly narrower stick (301mm vs 306mm).
Hope this helps!
Andrew
The Attachment Company
Would a Cat 302.7Cr Implement (auger, Trenching bucket) work on a Kubota KX030-4R1?
Hi Andrew, CAT 302/7 has 35mm pins and I am not 100% certain but I think the KX030 is on 40mm pins. Not completely sure but I don’t think your CAT attachments will go on the Kubota.
Thanks!
Andrew
The Attachment Company
