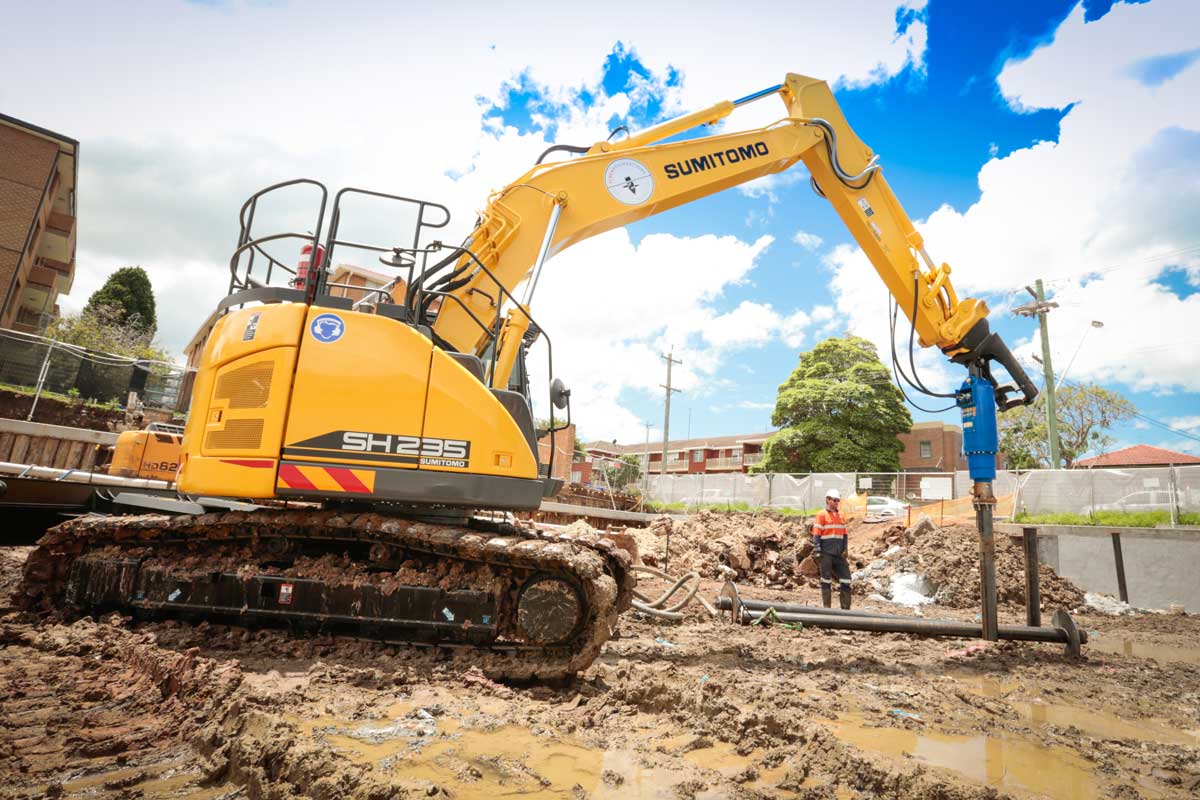

Large Excavator Auger Drive for Machines up to 25 tons
Our Large Excavator Auger Drive gives you enough torque to drive a 60″ auger as deep as 10ft. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.
We can build the mount to suit your specific excavator or you can purchase the drive only!
Choose your auger to suit this auger drive here![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Excavator Auger Drive Specifications
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]EXCAVATORS UP TO 50,000LBS – S6 AUGERS (3″ Square) – 6 in. – 60 in. Diameter[/vc_column_text][vc_column_text]Torque Range: 12,171 – 18,257 ft-lb
Oil Pressure Range: 2,321 – 3,481 psi[/vc_column_text][vc_column_text]Oil Flow Range: 21 – 45 gpm
Speed Range: 12 – 26 rpm[/vc_column_text][vc_column_text]Unit Height: 45 in.
Unit Diameter: 14 in.
Unit Weight: 593 lbs[/vc_column_text][vc_column_text]Hitch Options: Single Pin Hitch
Double Pin Hitch
Double Pin Cradle Hitch (recommended)[/vc_column_text][vc_column_text]Optional Extras: Pressure Relief Valve 2 Way Valve
Output Shaft : 2.96 in. Square[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Suits our S6 Augers (3″ Square)
6 in. – 60 in. Diameter[/vc_column_text][vc_single_image image=”317″ img_size=””][vc_column_text]Suitable Excavators for the 18500-45 (as a guideline):
Bobcat E165
CAT 316, 320, 325
CASE CX160, CX200, CX210
Doosan DX180, DX225
JCB JS160, JS200
John Deere/Hitachi 160G, 200G, 210G
Link Belt 160×4, 210×4
Komatsu PC160, PC200, PC210
Sany SY210
Takeuchi TB2150
Volvo EC160, EC200, EC220[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Drive Features
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_text_separator title=”Forged Hood Ears”][vc_column_text]
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
[/vc_column_text][vc_text_separator title=”Hose & Coupler Options”][vc_column_text]
All of our S4 auger drives (2” hex) come with high quality hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
[/vc_column_text][vc_text_separator title=”High Quality Hydraulic Motors”][vc_column_text]
Auger Torque’s huge buying power
means we work closely with high
quality suppliers to develop the most
reliable attachments available on the
market today
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_text_separator title=”Epicyclic Gearbox”][vc_column_text]
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
[/vc_column_text][vc_text_separator title=”Non-Dislodgement Shaft”][vc_column_text]
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling out of your auger drive.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Warranty Information
Auger Torque provides a leading warranty for auger drive components as shown below. This includes LIFETIME parts replacement warranty on the dislodgement of the drive output shaft.
All Auger Torque products are warranted for the periods summarized below:
- Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Video Gallery
[/vc_column_text][vc_video link=”https://youtu.be/Rj21oTFxSMM” el_width=”70″ align=”center”][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Request a quote or submit any inquiries below!
[/vc_column_text][contact-form-7 id=”600″ title=”REQUEST A FULL QUOTE!”][/vc_column][/vc_row]
