Mini Excavator Auger Package Deal for Machines up to 6 tons!
This mini excavator auger package deal comes with your choice of hydraulic drive, single pin or double pin cradle mount, hoses & couplers and your choice of tungsten carbide auger up to 36″ diameter!
Our Mini Excavator Auger Package gives you the best deal on the market for an auger attachment. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.
Other attachments are also available to work with this auger setup like stump planers & log splitters
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Auger Specifications
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

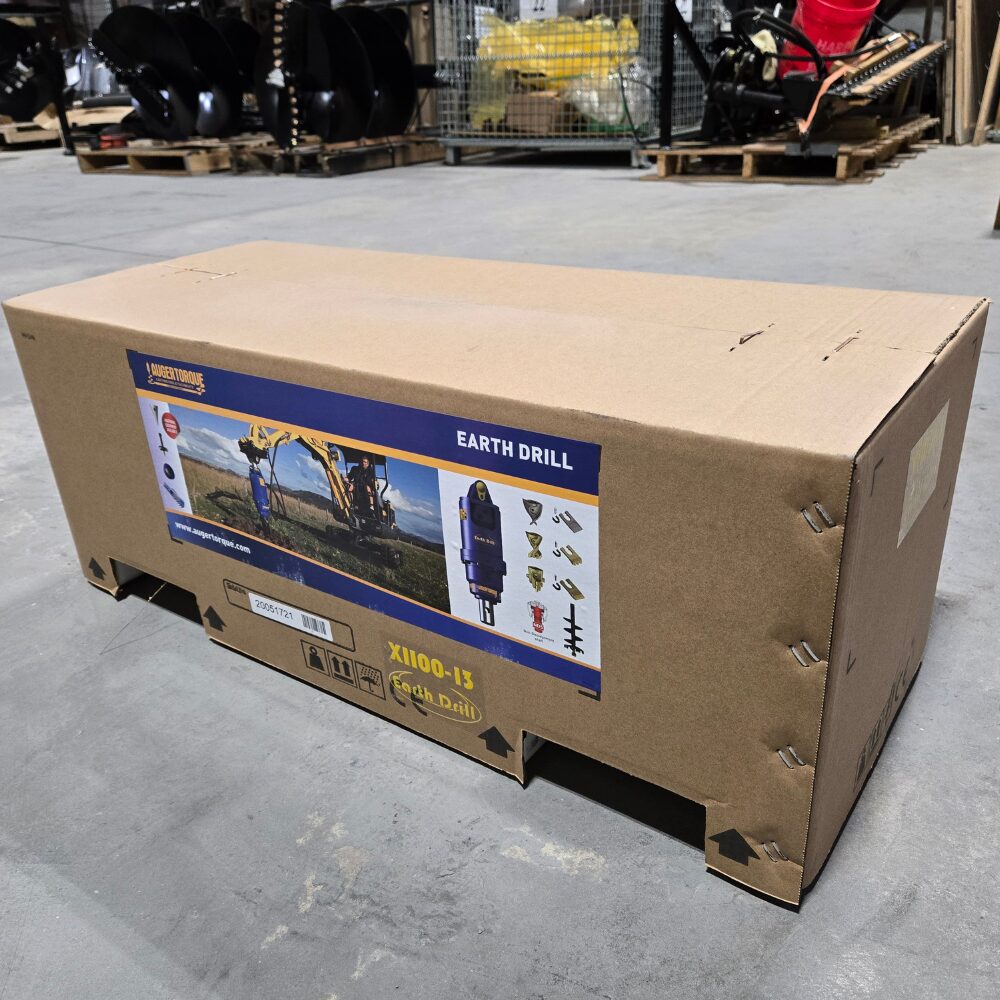

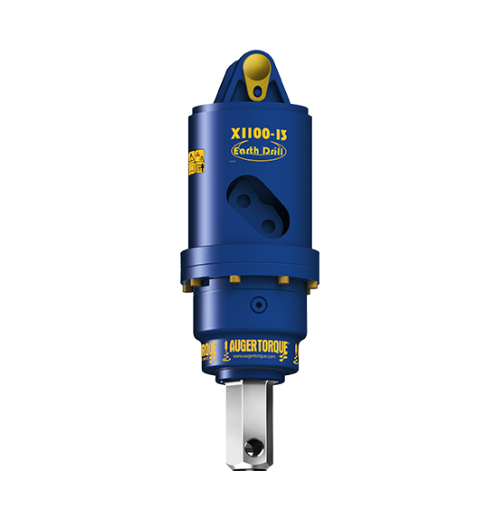

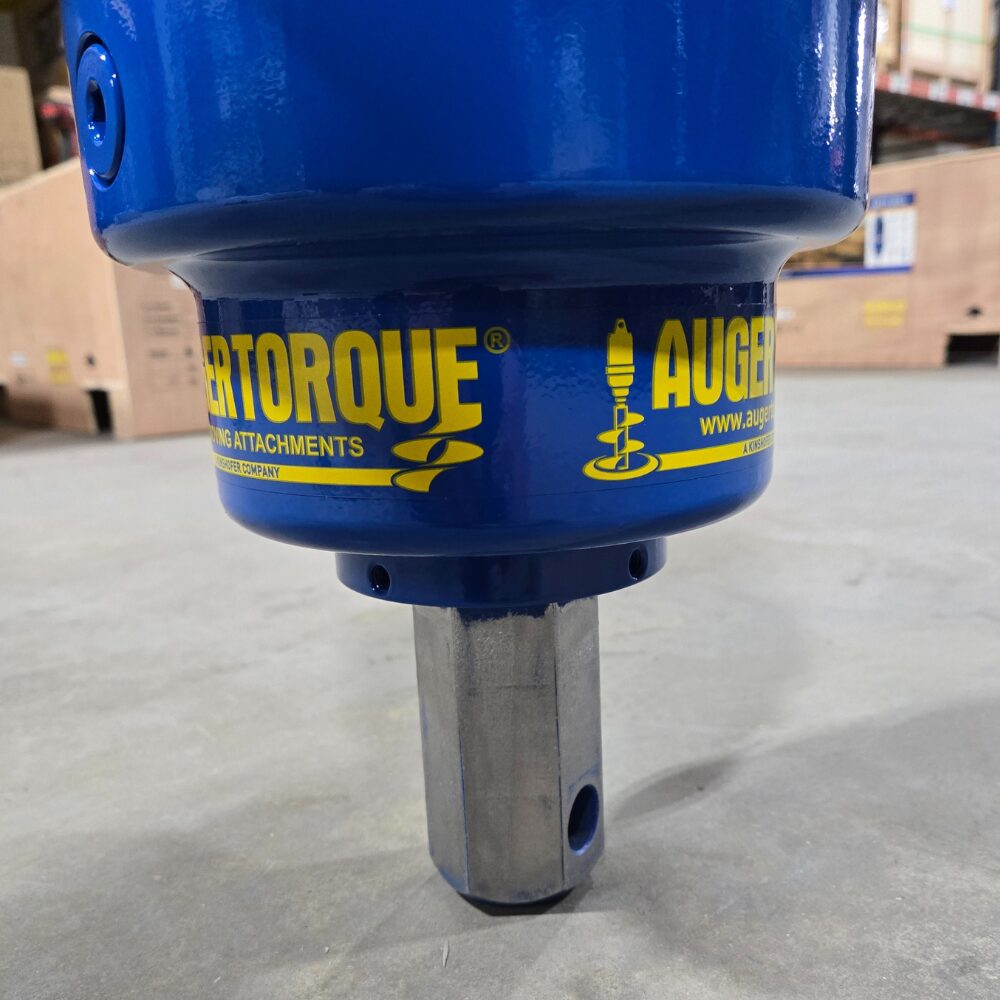

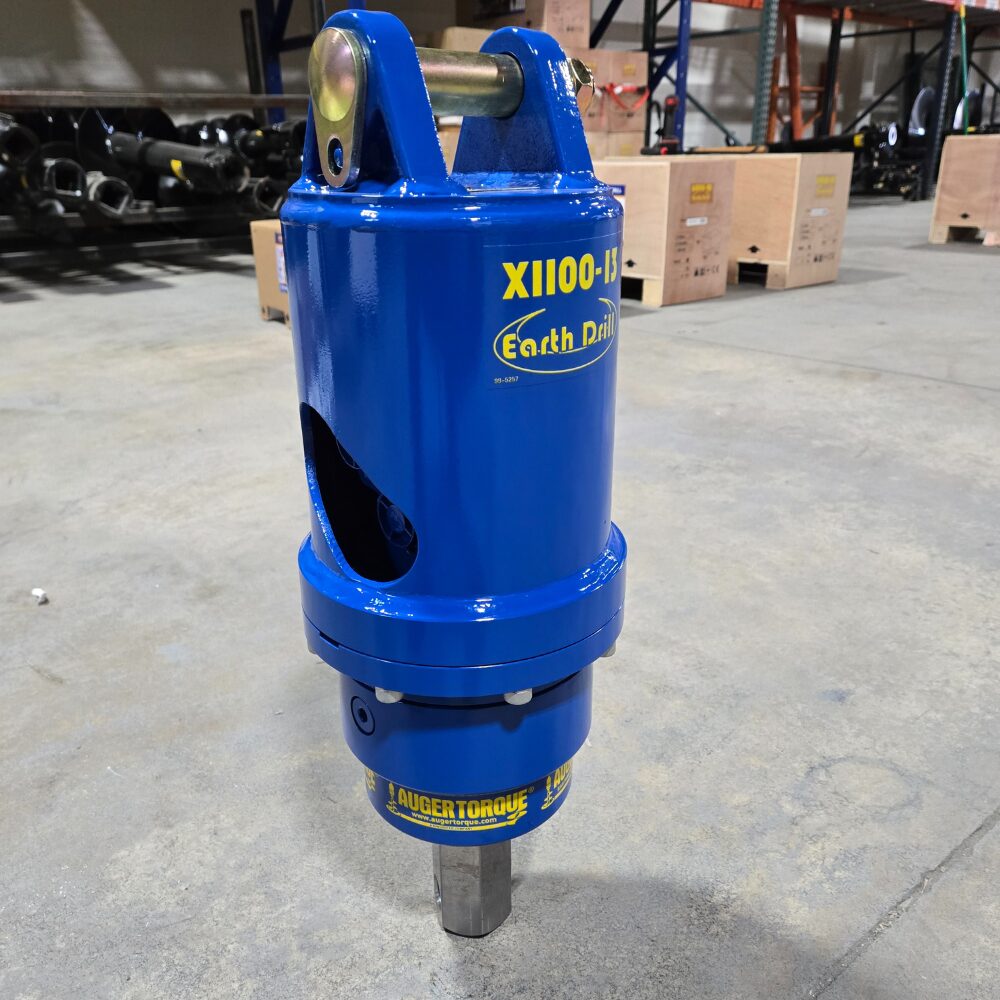

Model X1100-13 (Machines up to 2.5 tons)
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]Mini Excavators up to 5,000lbs (2.5 Ton)
Suits 2″ Hex Augers – 4 in. – 18 in. Diameter
Oil Pressure Range: 1,015 – 2,973 psi
Speed Range: 41 – 107 RPM
Unit Diameter: 8 in.
Unit Weight: 100lbs
[/vc_column_text][vc_column_text]Suitable Excavators for this X1100-13 package (as a guideline):
Bobcat E10, E16
CAT 300.9, 301.5, 301.7CR
JCB 8008, 8015, 8018
John Deere 17G
Komatsu PC09-1, PC16R-3
Kubota KX014, KX016
Takeuchi TB016, TB216
Yanmar ViO17[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3384″ img_size=”large” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]

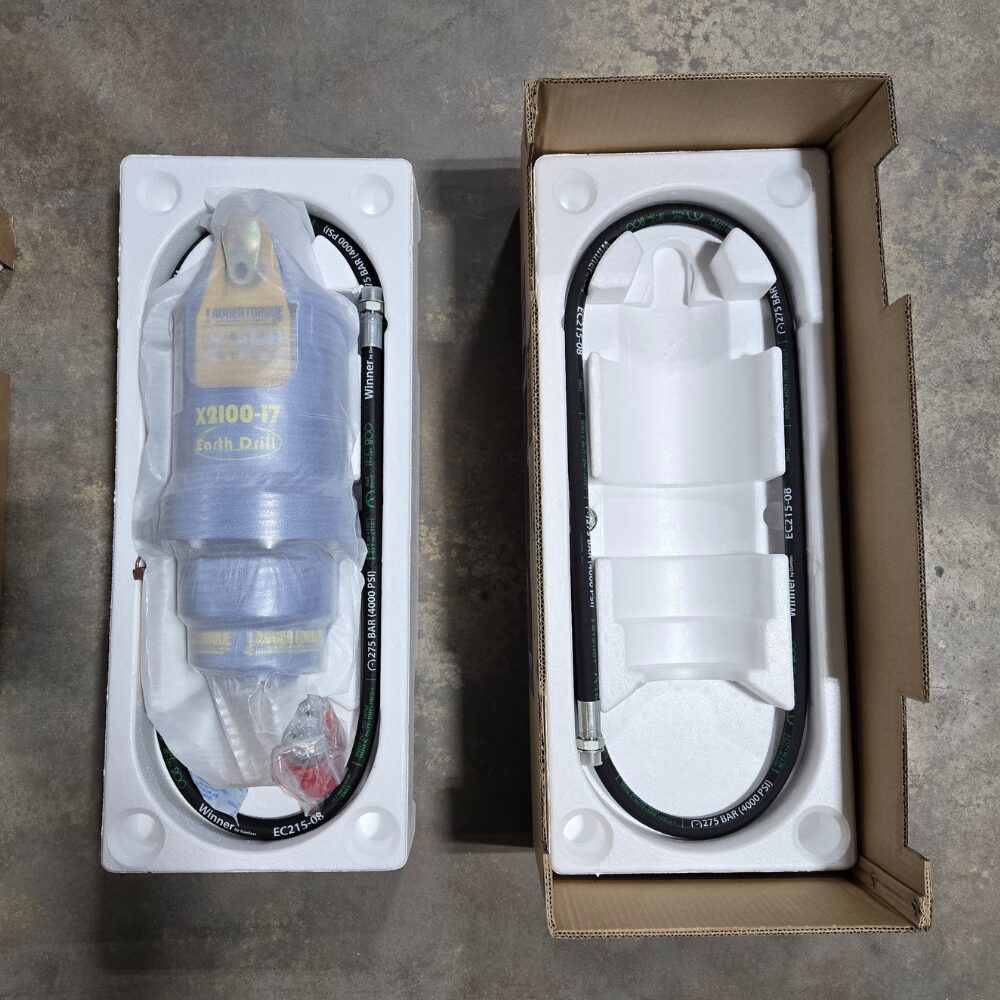

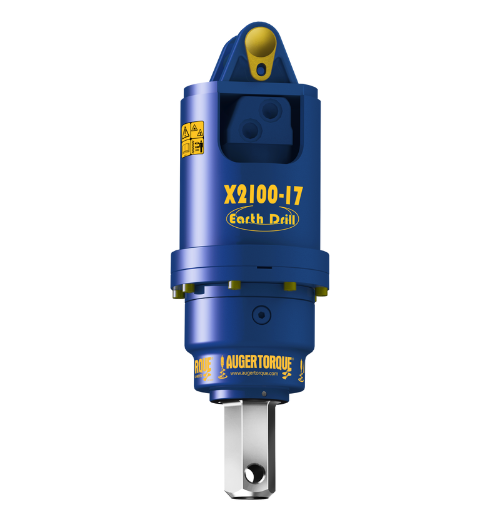

Model X2100-17 (Machines up to 3.5 tons)
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]Mini Excavators up to 7,000lbs (3.5 Ton)
Suits 2″ Hex Augers – 4 in. – 24 in. Diameter
Torque Range: 612 – 2,100 ft-lb
Oil Pressure Range: 1,015 – 3,481 psi
Output Shaft: 2″ Hex (US Standard)
Oil Flow Range: 7 – 17 GPM
Speed Range: 36 – 100 RPM
Unit Height: 26 in.
Unit Diameter: 10 in.
Unit Weight: 157 lbs
[/vc_column_text][vc_column_text]Suitable Excavators for this X2100-17 package (as a guideline):
Bobcat E20
CAT 302, 302.7, 303
JCB 8025, 8035
John Deere 27G, 35G
Komatsu PC24, PC35
Kubota KX121, U35
Takeuchi TB225, TB230
Volvo ECR35
Yanmar ViO25, ViO30[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3385″ img_size=”large” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]

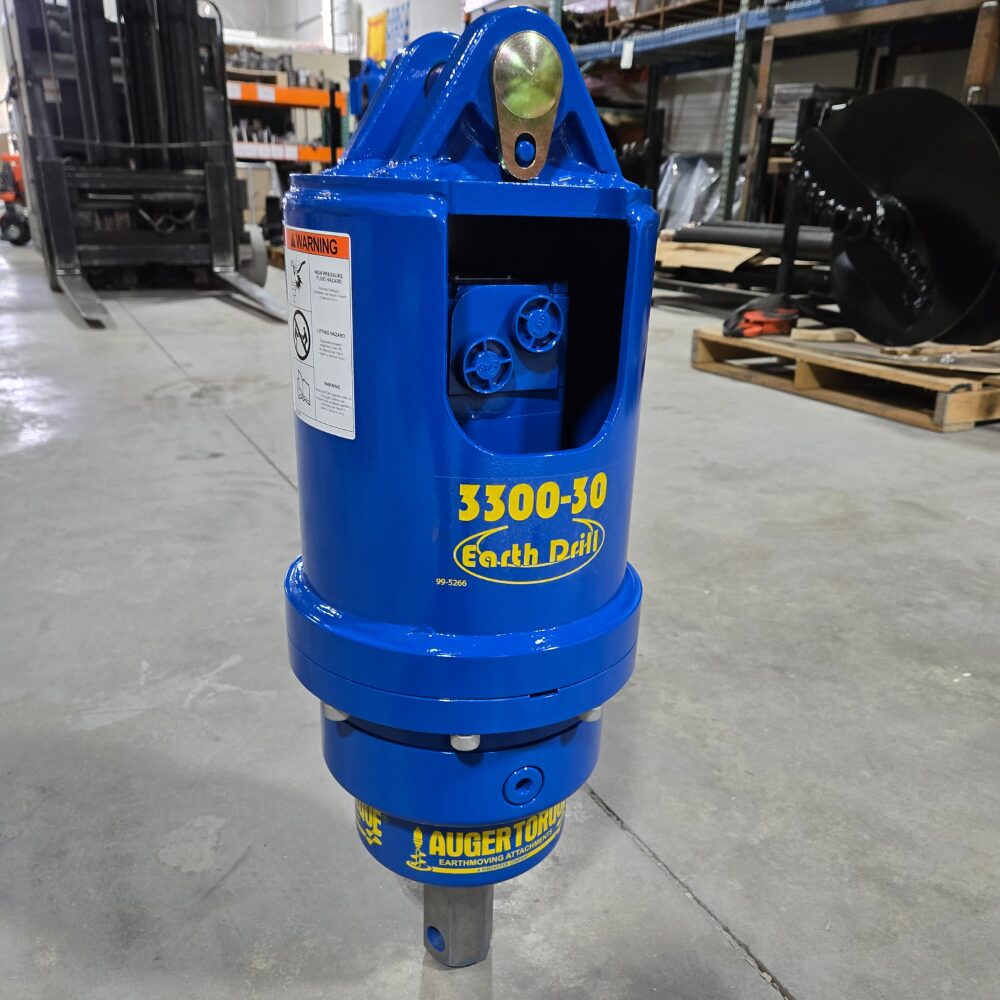

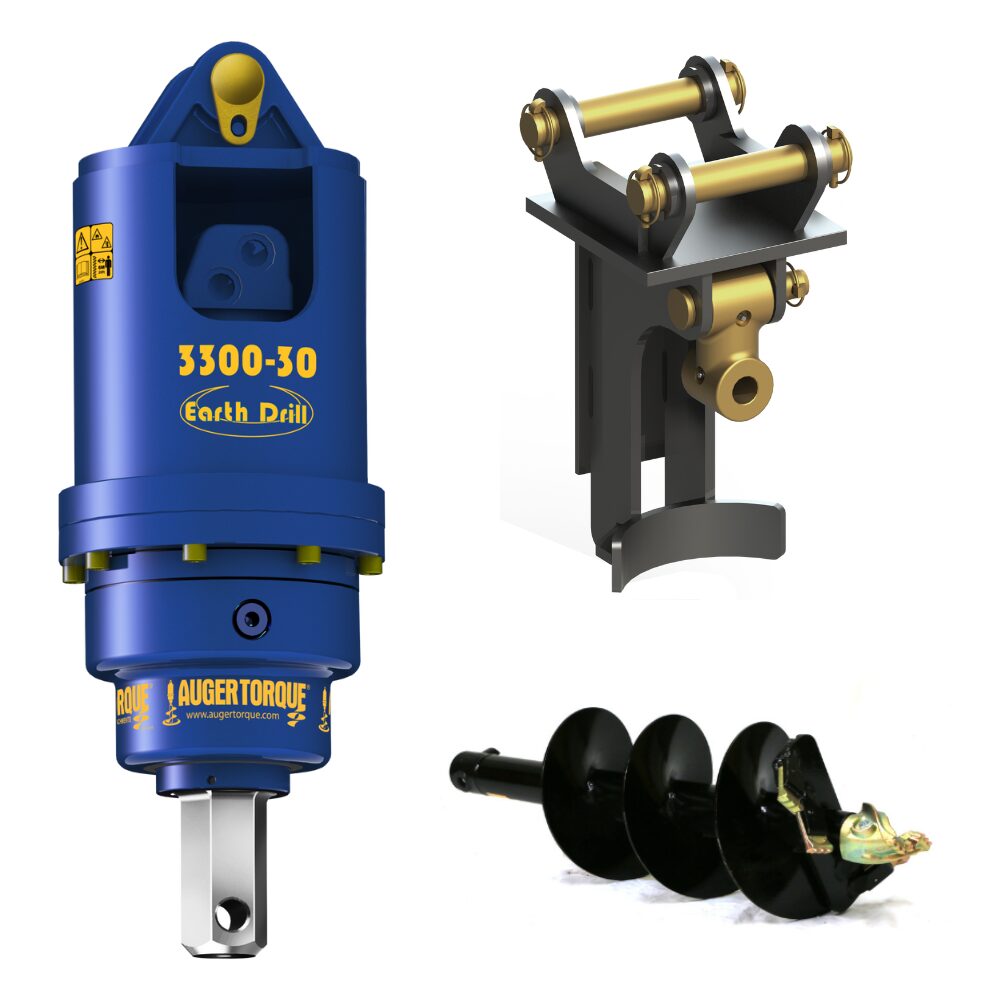

Model 3300-30
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]Mini Excavators up to 12,000lbs (6 Ton)
S4 AUGERS (2″ Hex) 4 in. – 36 in. Diameter[/vc_column_text][vc_column_text]
Torque Range: 1,106 – 3,318ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Output Shaft: 2″ Hex (US Standard)
Oil Flow Range: 13 – 30GPM
Speed Range: 42 – 97 RPM
Unit Height: 26 in.
Unit Diameter: 10 in.
Unit Weight: 166lbs – 277lbs w/ excavator mount
[/vc_column_text][vc_column_text]Suitable Excavators for this 3300-30 package (as a guideline):
Bobcat E35, E42
CASE CX30, 37
CAT 303, 304, 305
JCB 8035
JCB 45Z, 48Z
John Deere 35G, 50G
Komatsu PC35, 55
Kubota KX037, KX042
Kubota U35, U50
Sany SY35, 50
Takeuchi TB240, 250
Volvo ECR40, 50, 55
Yanmar ViO35, 55[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3366″ img_size=”large” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Mounting Options
Single Pin (cheapest)
Double Pin Cradle (recommended)
Double Pin Hitches are built to suit the machine’s pin dimensions. These can be manually pinned to the machine or picked up by a coupler.
We also can build machine specific “quick connect” mounts for Kubota, John Deere, Bobcat etc. These are to suit the specific machine make & model.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”263″ img_size=”medium” alignment=”center”][/vc_column][vc_column width=”1/2″][vc_column_text]

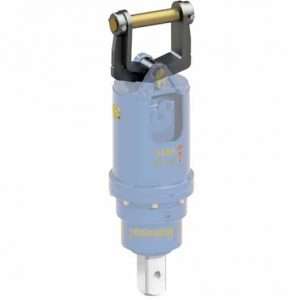

Single Pin Mount
[/vc_column_text][vc_column_text]
Single pin mounts are the cheapest and fastest option for mounting this 3300-30 auger drive to your machine. One single pin through the stick of the machine.
Measurements Needed: Pin Diameter – 25mm to 45mm[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

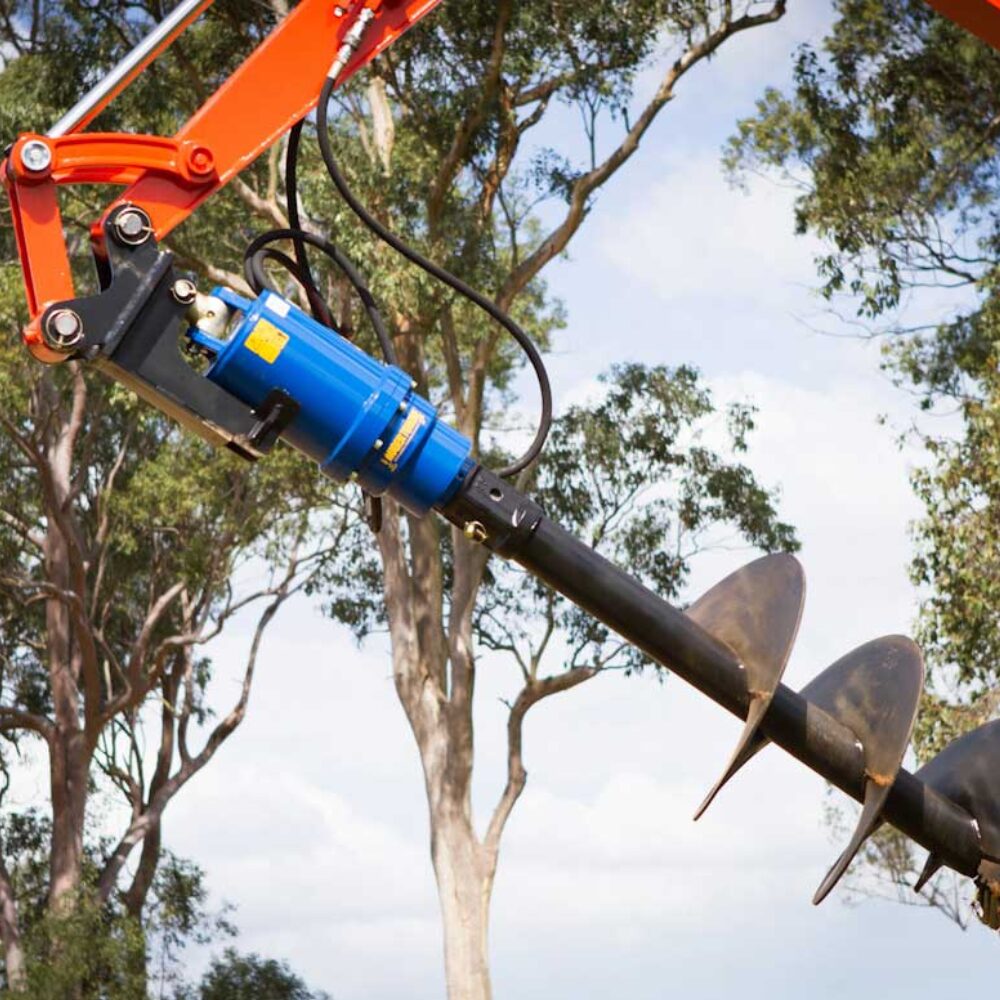

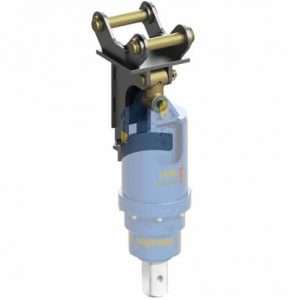

Double Pin Cradle Mount
[/vc_column_text][vc_column_text]Double Pin Cradle Mounts are built to the pin dimensions of your machine. The cradle allows you to tuck the drive in and prevent swinging when moving the machine around the job site.
Measurements Needed:
Pin Diameter
Dipper/Stick Width
Pin Center to Center[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”264″ img_size=”medium” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]

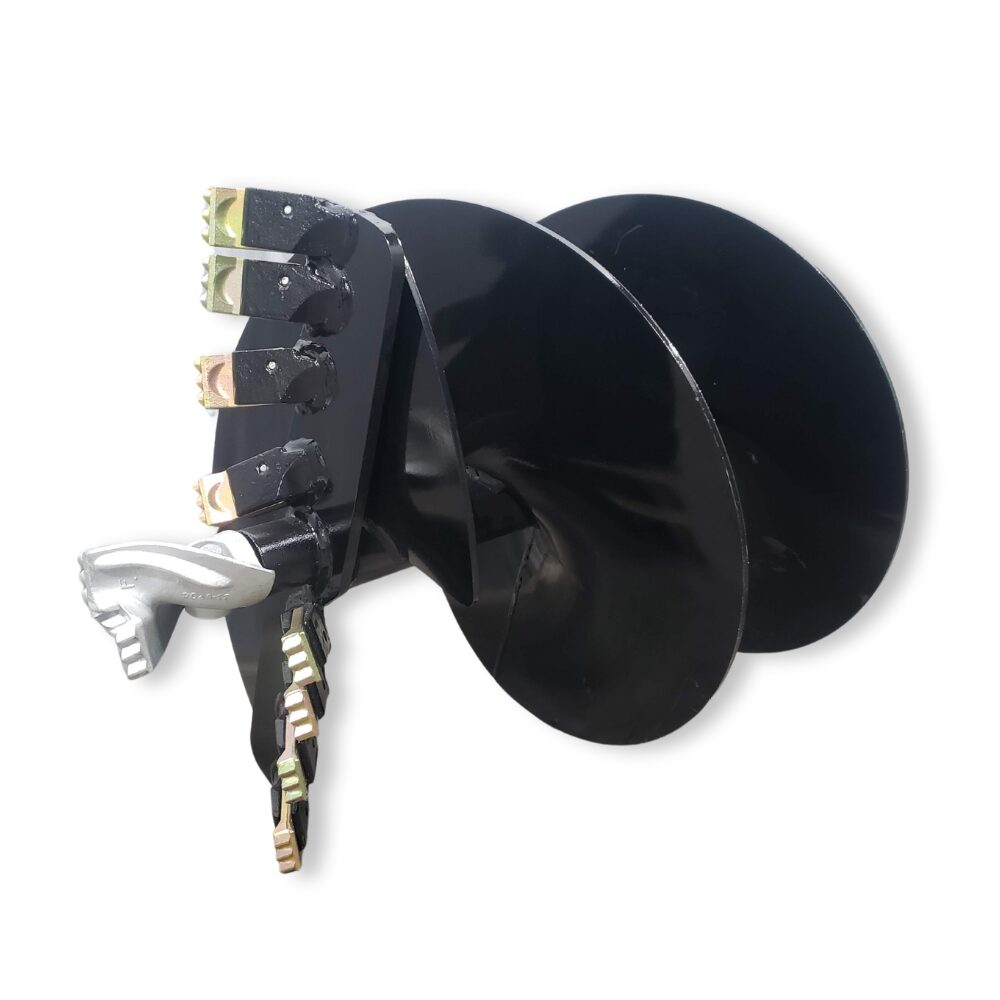

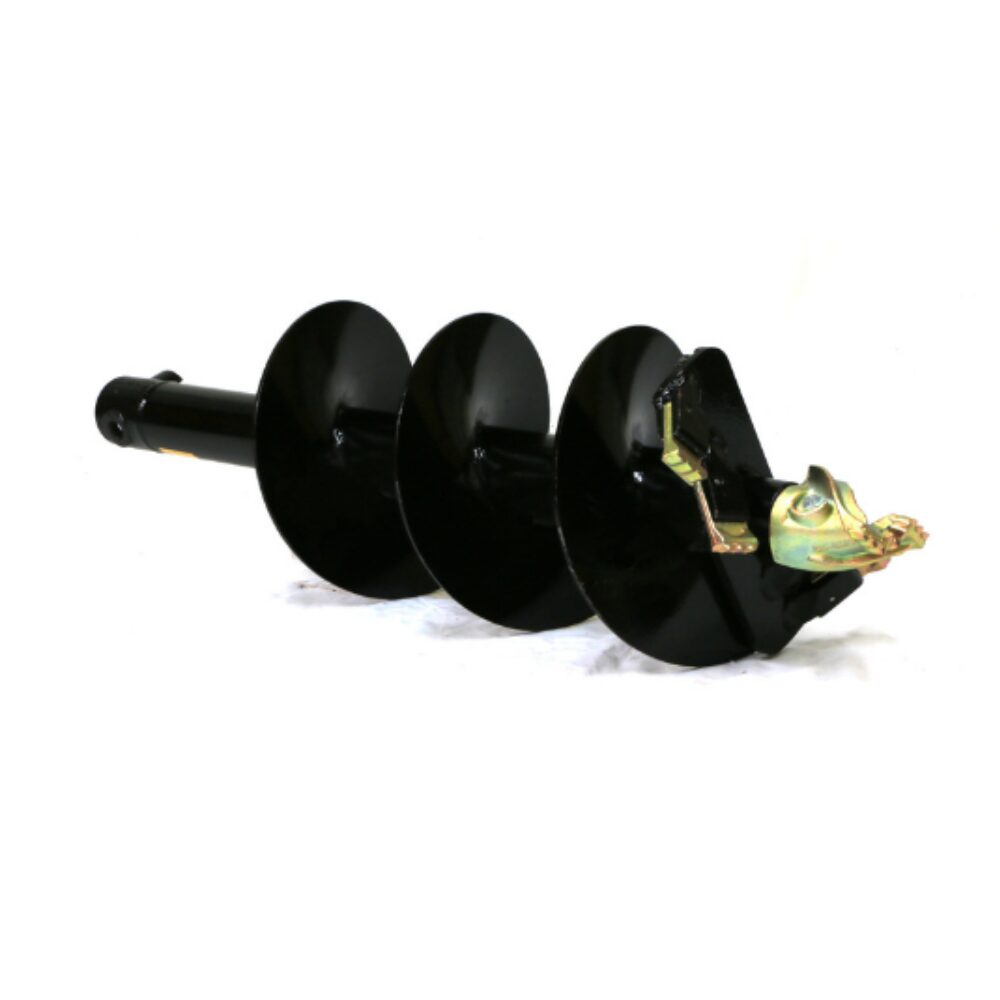

Auger Bit Specifications
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

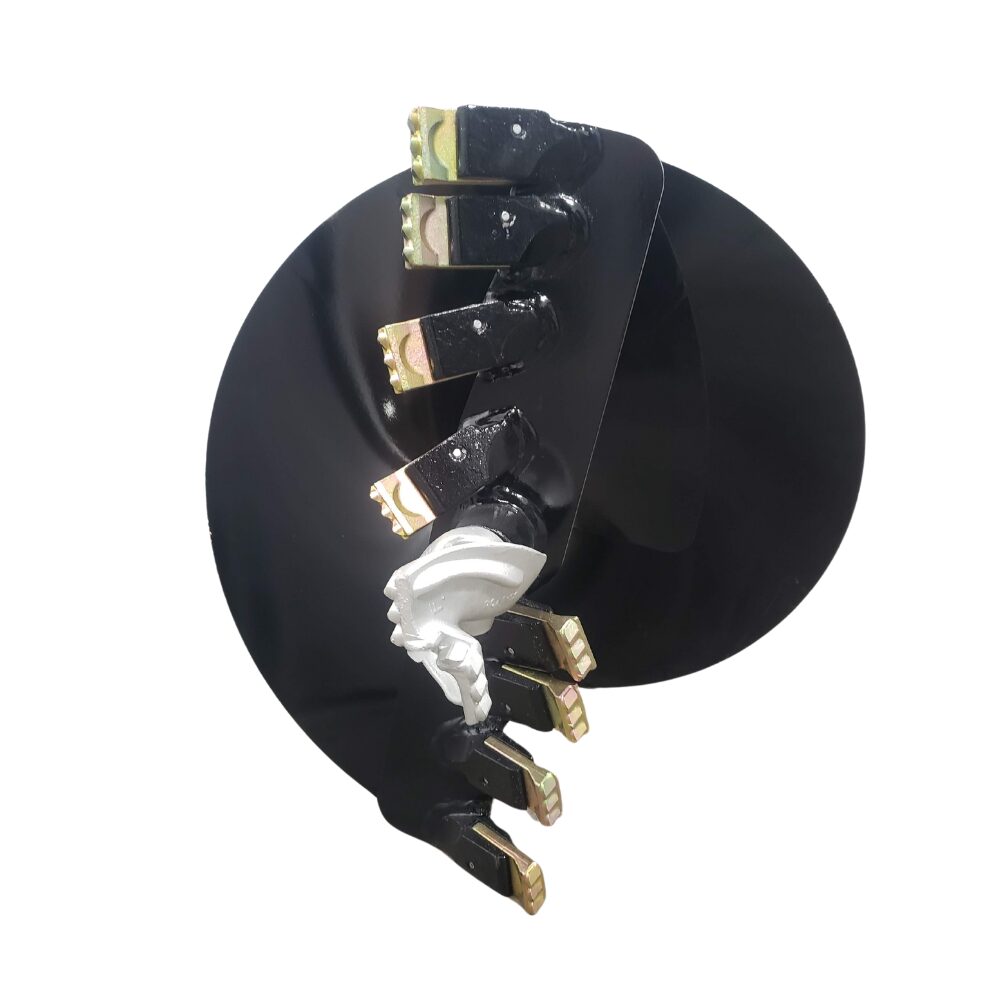

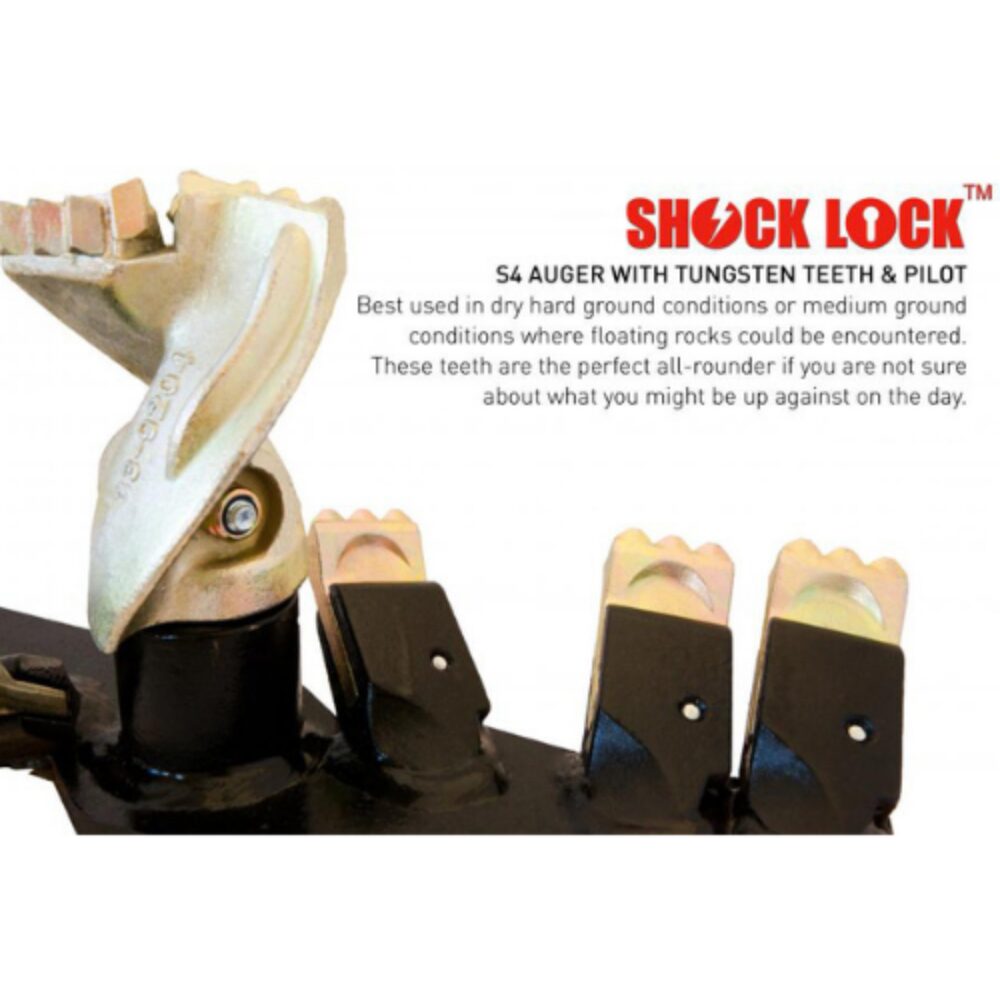

Tungsten Carbide Teeth & Pilots
As standard we now offer our auger bits with tungsten carbide teeth and pilot tips instead of regular steel. This suits soft soils as well as harder ground and will last more than 3 times as long as regular dirt teeth.
Shallow Pitch Flights
We developed the perfect pitch for our flights by listening to operators feedback . All augers use single, shallow pitch flights to hold more dirt on the auger when removing from the hole.
Constant Spiral Cut
Our boring heads are designed with a Constant Spiral Cut. Teeth are located so that each tooth makes its own fresh cut on every revolution. They are also angled to direct spoil towards the center of the auger. The tooth cutting angle ensures spoil is broken up thoroughly to avoid any clogging.
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3440″ img_size=”large” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Auger Drive Features
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_text_separator title=”Forged Hood Ears”][vc_column_text]

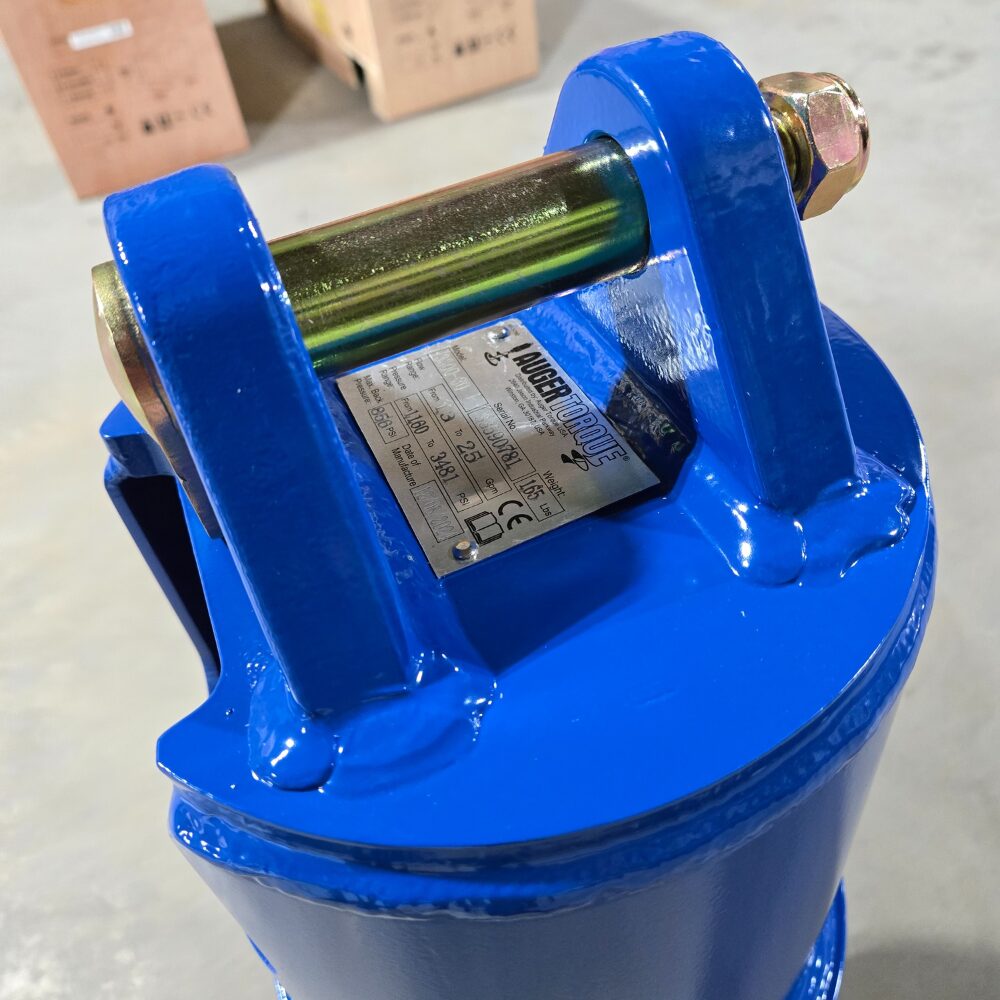

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
[/vc_column_text][vc_text_separator title=”Hose & Coupler Options”][vc_column_text]
All of our 2” hex come with high quality 1/2″ hoses and couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_text_separator title=”Non Dislodgement Shaft”][vc_column_text]
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling
out of your auger drive.
[/vc_column_text][vc_text_separator title=”Gearbox Design”][vc_column_text]
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]
Video Gallery
[/vc_column_text][vc_video link=”https://www.youtube.com/watch?v=nA8fefsozuk” align=”center”][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Warranty Information
We provide replacement warranty units for the coverage listed below.
All Auger Torque products are warranted for the periods below:
- Planetary Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_toggle title=”Frequently Asked Question’s”]What size of output shaft is on this 3300-30 drive?
This drive comes with a 2″ hex output shaft that suits all 2″ hex augers on the market in the US.
Will this auger drive fit my mini excavator?
This auger drive will suit any mini excavator in the 3 to 6 ton range.
How does this auger drive mount to my machine?
We will build a mount to suit your machine – either a single pin or double pin cradle mount. Single pin will mount through the main pin of the machine. A double pin cradle will be built to your machine’s pin diameter, stick width and pin centers. If your machine has a Kubota style quick coupler or another dedicated coupler system we will build your mount to suit.
What are the flow rates and oil pressure ranges for this drive?
Torque Range: 1,106 – 3,318ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
What is the maximum auger diameter that this drive can turn?
The maximum diameter of auger that we recommend on this drive is 36″.[/vc_toggle][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

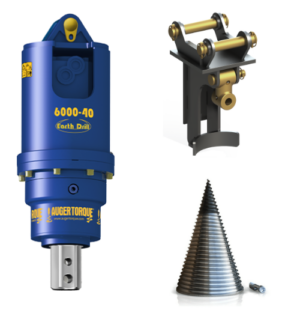

Tools that also suit these auger drives:

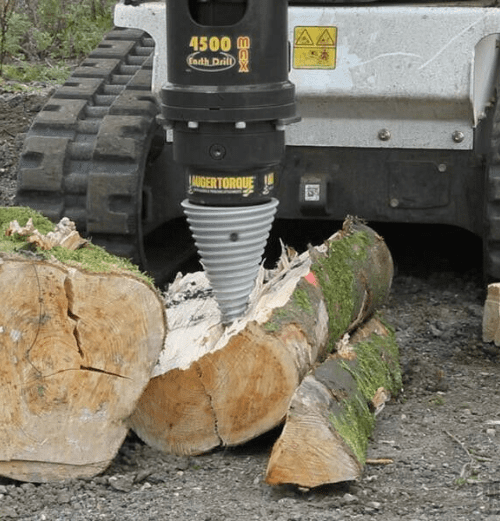

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”1651″ img_size=”500×521″ add_caption=”yes” alignment=”center” onclick=”custom_link” img_link_target=”_blank” title=”Stump Planers” link=”https://attachmentco1-dev.10web.site/product/auger-torque-stump-planer/”][/vc_column][vc_column width=”1/2″][vc_single_image image=”2423″ img_size=”500″ add_caption=”yes” alignment=”center” onclick=”custom_link” img_link_target=”_blank” title=”Log Splitter Cones” link=”https://attachmentco1-dev.10web.site/product/log-splitter-cone/”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
