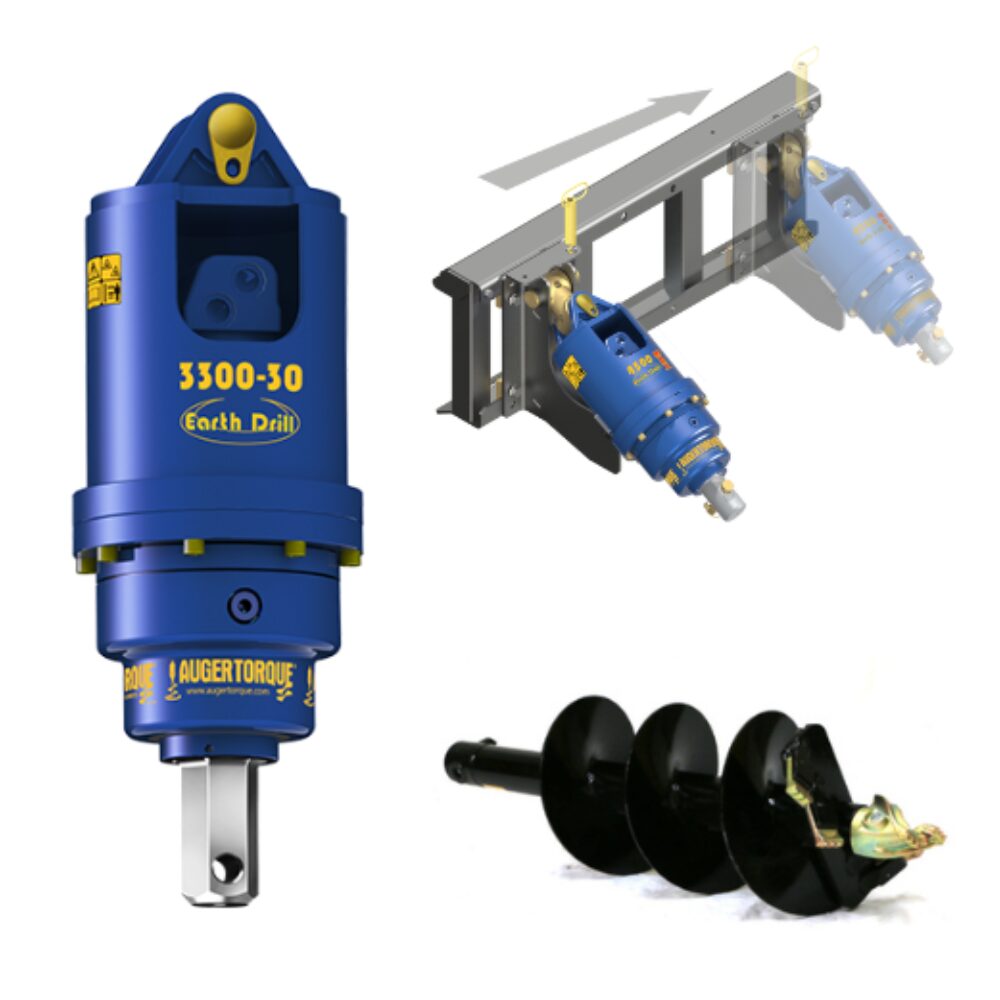

Skid Steer Auger Package – Standard Flow & High Flow Machines

Skid Steer Auger Package for standard flow machines with up to 30GPM and for high flow machines with up to 40GPM. This package deal comes with hydraulic drive, skid steer mount, hoses & couplers and your choice of auger size up to 36″!

Our Skid Steer Auger Package gives you the best deal on the market for an auger setup for your skid steer. If you have a special attachment inquiry, please do not hesitate to contact us on (941) 212-0037.

Other attachments are also available to work with the 3300-30 like our log splitter cone and stump planers![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

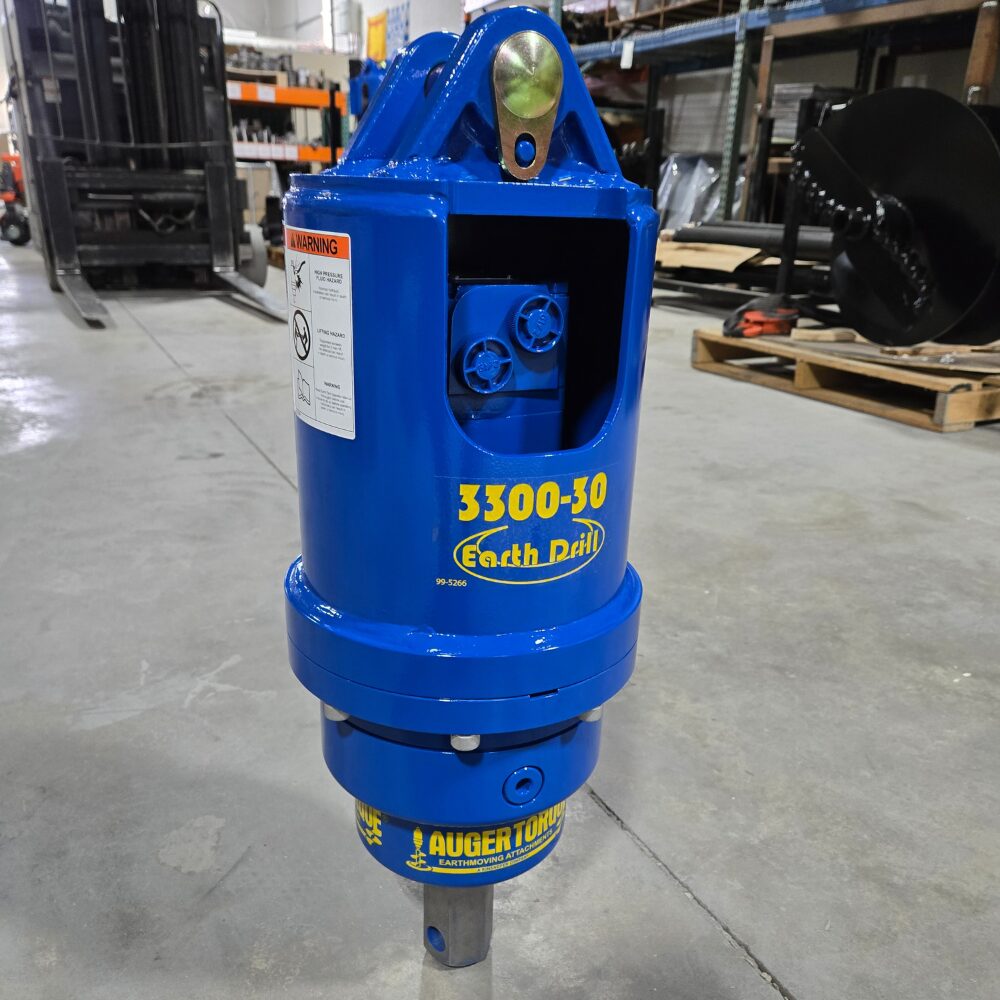

3300-30 (Standard Flow) Skid Steer Auger Specifications

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]3300-30 Suits standard flow skid steers with up to 30GPM!

2″ Hex Output Shaft  for augers from 4 in. – 36 in. diameter[/vc_column_text][vc_column_text]

[/vc_column_text][vc_column_text]

Machine Guidelines

3300-30 Suitable Skid Steers as a guideline: All the following models are suitable in standard flow. To utilize your machine’s high flow see the 6000-40 spec below.

NOTE: A high flow skid steer is suitable to run the 3300-30 drive in standard flow mode ONLY (up to 30GPM).

Bobcat S450 to S850
Bobcat T450 to T850
CAT 232D3 to 272D3
CAT 239D3 to 299D3
CASE SR175B to SV340B
CASE TR170B to TV620B
JCB 215 to 300 & TELESKID 3TS-8W
JCB 215T to 325T
John Deere 318G to 332G
John Deere 317G to 333G
Kubota SSV65 & SSV75
Kubota SVL65 to SVL97-2
Takeuchi TL6R to TL12V2
Volvo MC80 to MC155[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3366″ img_size=”large” alignment=”center” css=”.vc_custom_1675621748337{margin-top: 0px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

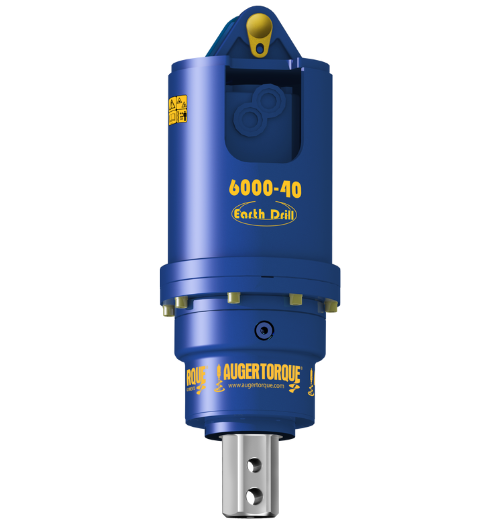

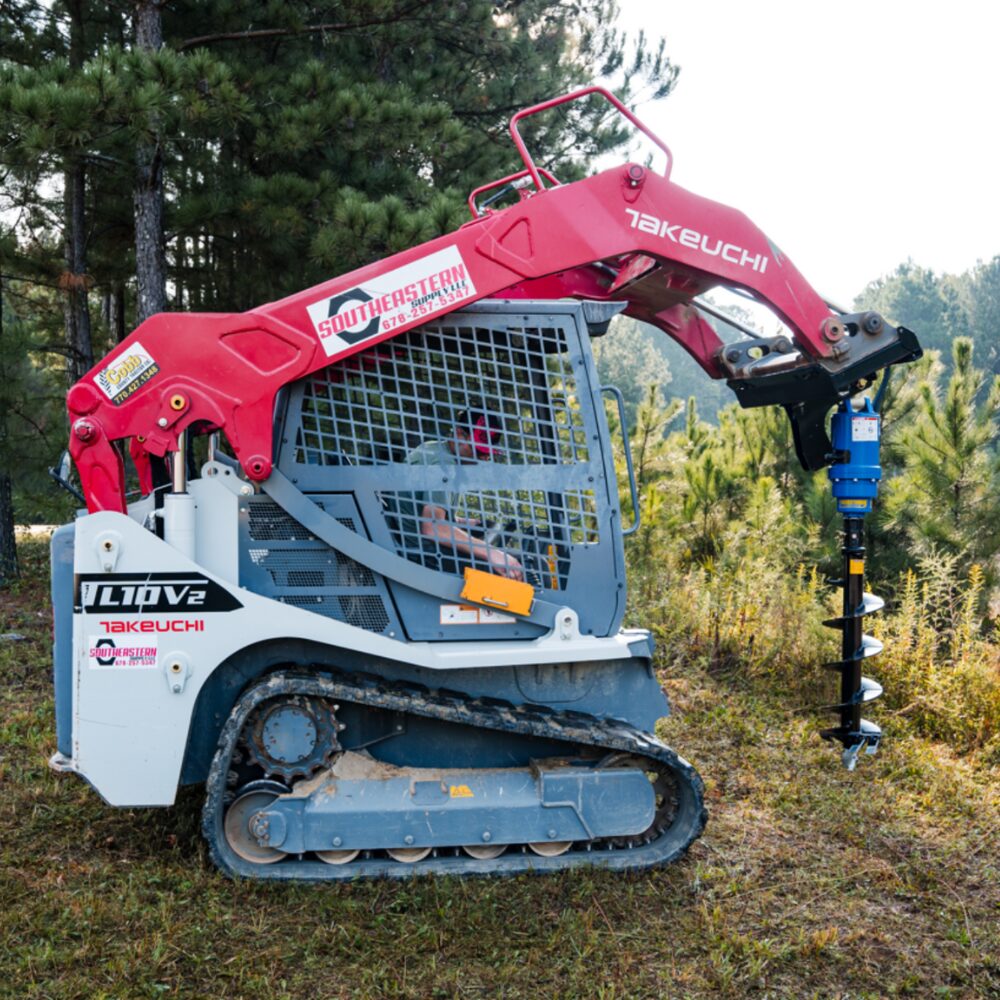

6000-40 (High Flow) Skid Steer Auger Specifications

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]6000-40 Suits standard flow skid steers with up to 40GPM!

2.5″ Hex Output Shaft  for augers from 6 in. – 48 in. diameter[/vc_column_text][vc_column_text]

[/vc_column_text][vc_column_text]

Machine Guidelines

6000-40 Suitable Skid Steers as a guideline: All the following models are recommended for use in high flow (up to 40 GPM).

Bobcat S850 & T850
CAT 272D3 & 299D3
CASE SV340B & TV620B
JCB 325T
John Deere 332G & 333G
Kubota SVL75 & SVL97-2
Takeuchi TL12V2
Volvo MC155[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”260″ img_size=”large” alignment=”center” css=”.vc_custom_1675621739578{margin-top: 0px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]

Auger Drive Features

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_text_separator title=”Forged Hood Ears”][vc_column_text]

Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.

[/vc_column_text][vc_text_separator title=”Hose & Coupler Options”][vc_column_text]All of our 2” hex auger drives come with 1/2″ high quality hoses and 1/2″ flat face couplers included.

Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_text_separator title=”Non Dislodgement Shaft”][vc_column_text]

[/vc_column_text][vc_text_separator title=”Gearbox Design”][vc_column_text]

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][vc_column_text]

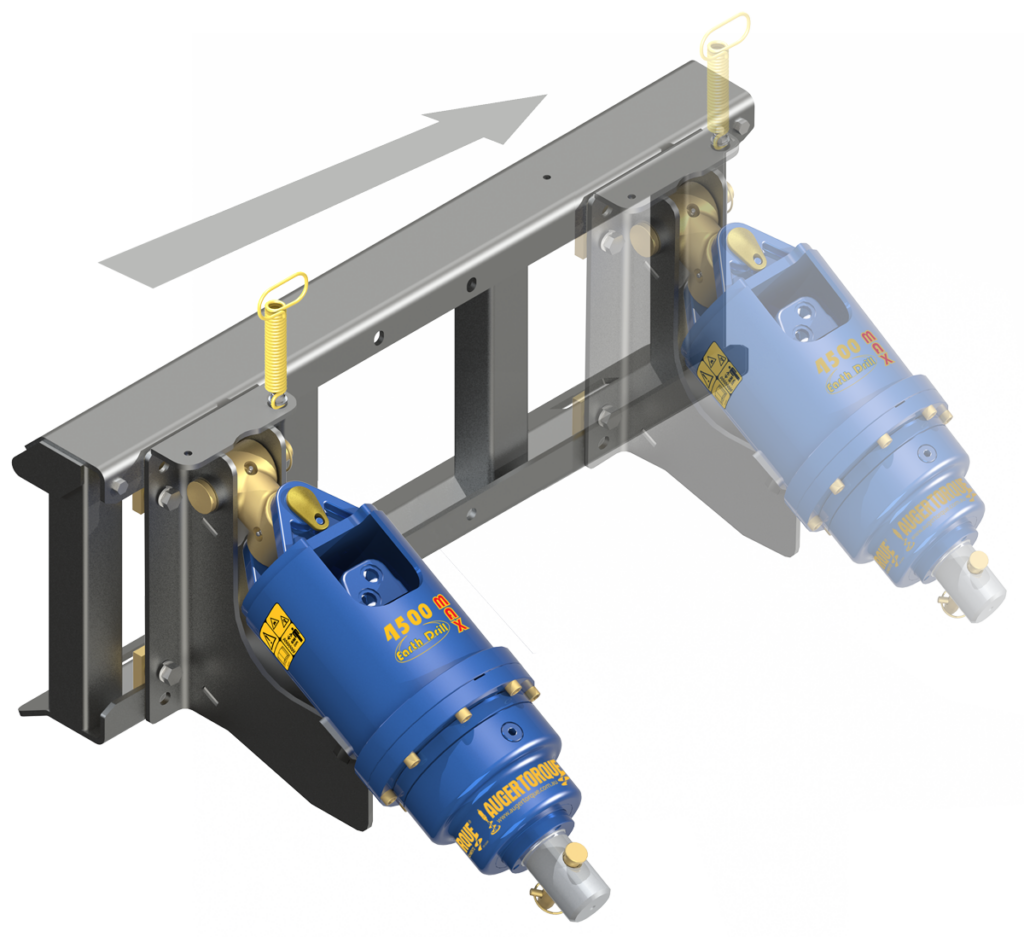

Skid Steer Side Shift Mounting Frame

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]Our skid steer auger packages comes with universal skid steer mounts that are equipped with the side shift feature.

By loosening 4 bolts on the frame, you are able to shift the auger cradle all the way from the left side to the right side of the mounting frame. This lets you drill holes closer to walls, fences or other objects.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”3594″ img_size=”large” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_text_separator title=”Warranty Information”][vc_column_text]

We provide replacement warranty units for the coverage listed below.

All Auger Torque products are warranted for the periods below:

• Planetary Gearbox Components – 72 Months
• Hydraulic Motors – 36 Months
• All Other Parts / Products – 24 Months

For any additional information on the Auger Torque range, you can visit their website here!

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

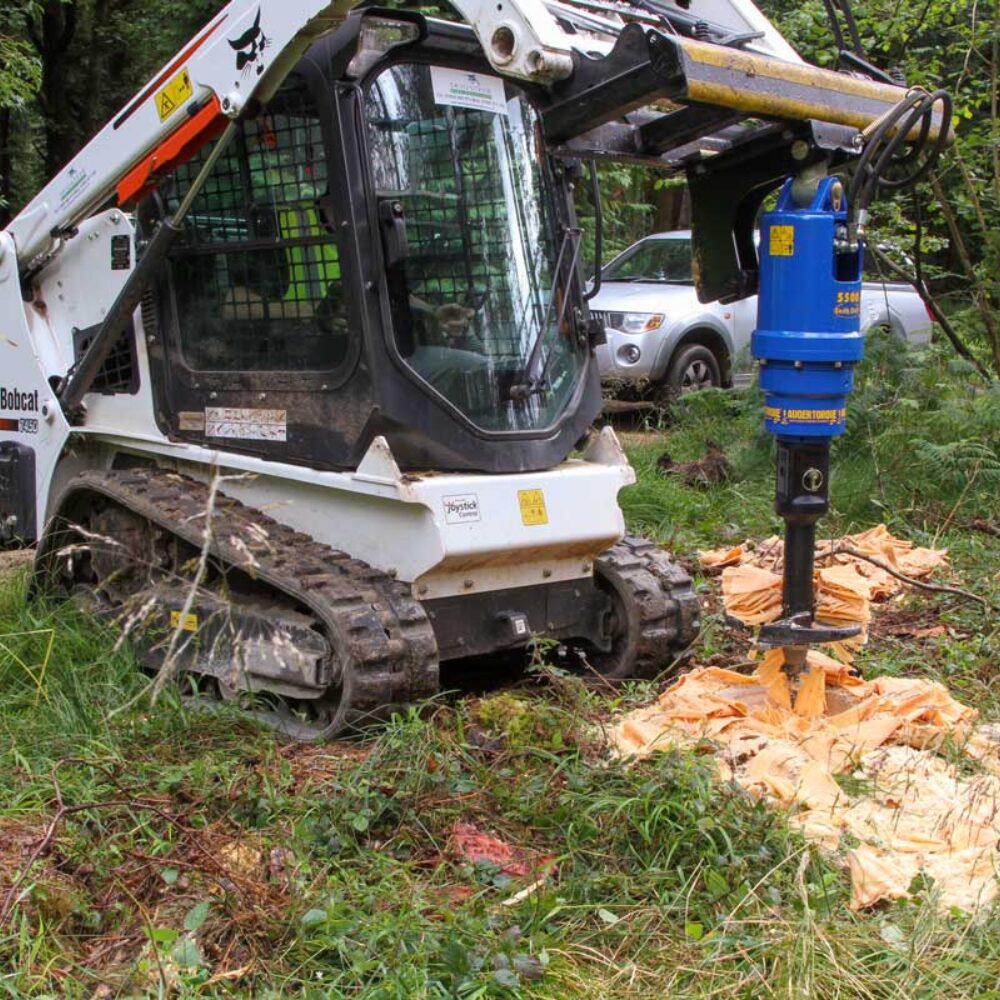

Tools that also suit these auger drives:

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”2423″ img_size=”500×521″ add_caption=”yes” alignment=”center” onclick=”custom_link” img_link_target=”_blank” title=”Log Splitter Cones” link=”https://attachmentco1-dev.10web.site/product/log-splitter-cone/”][/vc_column][vc_column width=”1/2″][vc_single_image image=”1651″ img_size=”500×521″ add_caption=”yes” alignment=”center” onclick=”custom_link” img_link_target=”_blank” title=”Stump Planers” link=”https://attachmentco1-dev.10web.site/product/auger-torque-stump-planer/”][/vc_column][/vc_row][vc_row enable_first_overlay=”true” first_overlay_opacity=”25″ first_background_color=”#b7b7b7″ css=”.vc_custom_1666624773075{margin-top: 50px !important;margin-bottom: 50px !important;}”][vc_column][vc_column_text css=”.vc_custom_1666624891731{margin-top: 50px !important;}”]

Also available for rental in the Denver area!

[/vc_column_text][vc_btn title=”3300-30 Auger Rental” color=”black” align=”center” link=”url:https%3A%2F%2Fattachmentco1-dev.10web.site%2Fproduct%2Fskid-steer-auger-rental%2F||target:%20_blank|” css=”.vc_custom_1666624925837{margin-bottom: 50px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_toggle title=”Frequently Asked Question’s”]What size of output shaft is on this 3300-30 drive?

This drive comes with a 2″ hex output shaft that suits all 2″ hex augers on the market in the US.

What size of output shaft is on this 6000-40 drive?

The 6000-40 has a 2.5″ hex output shaft.

Will this auger drive fit my mini excavator?

This 3300-30 auger drive will suit any skid steer with hydraulic flow up to 30GPM. the 6000-40 will suit any machine with up to 40GPM.

How does this auger drive mount to my machine?

This drive comes with the universal skid steer quick attach mount to suit all skid steer loaders.

What are the flow rates and oil pressure ranges for this drive?

Torque Range: 1,106 – 3,318ft-lb
Oil Pressure Range: 1,160 – 3,481 psi

What is the maximum auger diameter that this drive can turn?

The maximum diameter of auger that we recommend on the 3300-30 drive is 36″.  The 6000-40 can use up to a 48″ diameter auger bit.

How deep can I drill with this skid steer auger attachment?

With a 12″ diameter auger in soft ground our maximum recommended depth is around 12ft. In harder ground we estimate around 12ft. These are rough guidelines and depend greatly on the ground type etc.

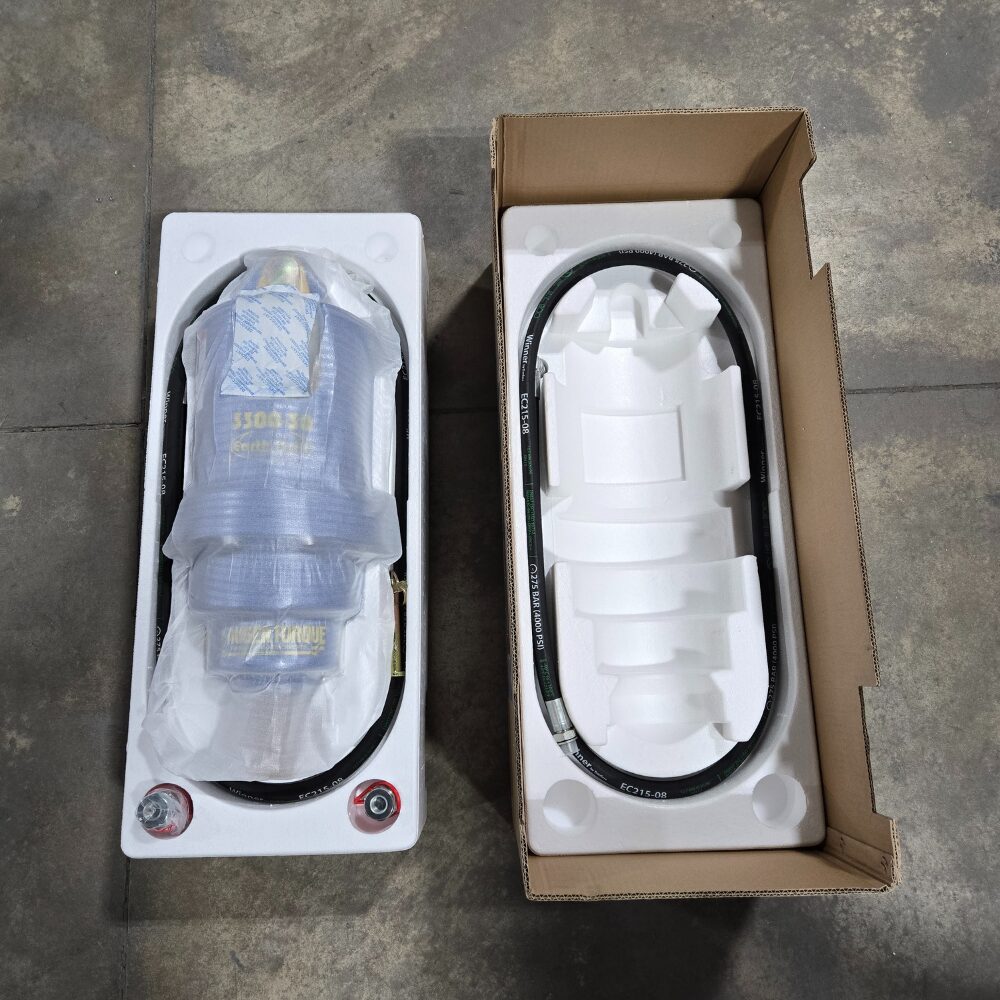

Are hoses included?

Yes each drive comes with hoses to suit. 3300-30 comes with 1/2″ hoses. 6000-40 comes with 3/4″ hoses. Flat face couplers are also included.[/vc_toggle][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
