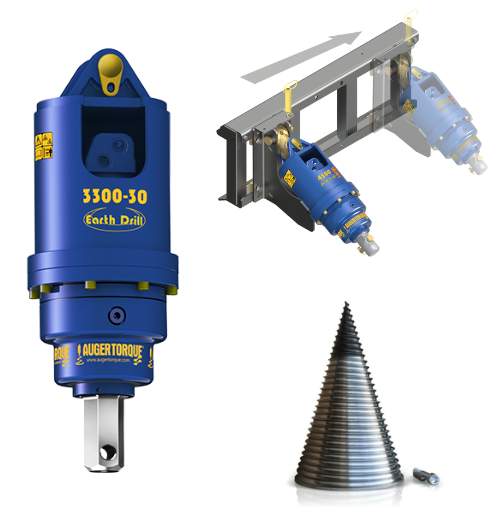

Skid Steer Log Splitter Package Deal
Log Splitter for Standard Flow Skid Steers up to 30GPM & High Flow Skid Steers up to 40GPM!
This package deal comes with hydraulic drive, skid steer mount, hoses & couplers, our log splitter auger cone & replacement tip!
Our Splitter Package gives you the best deal on the market for a log splitter setup. If you have a special attachment inquiry or are unsure of your machine’s compatibility with a particular attachment, please do not hesitate to contact us on (941) 212-0037.

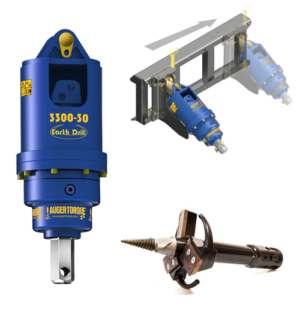

Other attachments are also available to work with this auger setup like stump planers & auger bits.
[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1674669319033{margin-top: 40px !important;margin-bottom: 40px !important;}”][vc_column width=”1/2″][vc_column_text]
Splitter Specifications

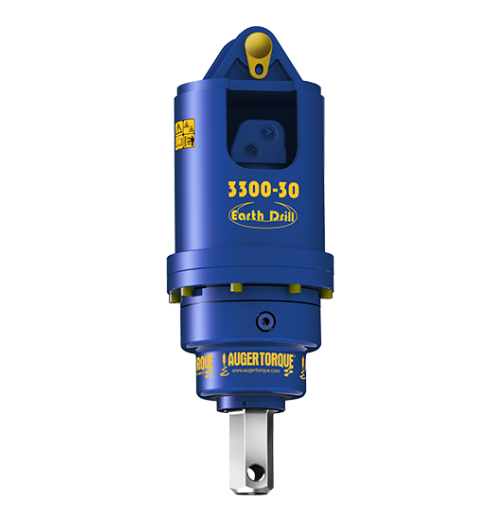

3300-30 Standard Flow Drive Specs
Torque Range: 1,106 – 3,318 ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Output Shaft: 2″ Hex (US Standard)
Oil Flow Range: 13 – 30GPM
Unit Diameter: 10 in.
Unit Weight: 166lbs – 277lbs w/ skid steer mount
6000-40 High Flow Drive Specs
Torque Range: 2,004 – 6,012 ft-lb
Oil Pressure Range: 1,160 – 3,481 psi
Output Shaft: 2.5″ Hex (US Standard)
Oil Flow Range: 19 – 40GPM
Speed Range: 33 – 70 rpm
Unit Height: 31 in.
Unit Diameter: 11 in.
Unit Weight: 260 lbs / 400lbs with skid steer mount
Package Deal includes the following:
3300-30 Auger Drive for Skid Steers with Universal Skid Steer Frame, 8″ or 10″ diameter log splitter cone, 1 extra replaceable tip, 1/2″ Hoses and Quick Release Flat Face Couplers
6000-40 Auger Drive for High Flow Skid Steers, Universal Skid Steer Mounting Frame, 10″ or 12″ diameter log splitter cone, 1 extra replaceable tip, 3/4″ hoses
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]
Machine Compatibility
3300-30 Suitable Skid Steers as a guideline: All the following models are suitable in standard flow. To utilize your machine’s high flow capabilities see the 6000-40 drive!
NOTE: A high flow skid steer is suitable to run the 3300-30 drive in standard flow mode. For more information visit our skid steer attachment guide!
3300-30 Suitable Skid Steers as a guideline: All the following models are suitable in standard flow.
Bobcat S450 to S850
Bobcat T450 to T850
CAT 232D3 to 272D3
CAT 239D3 to 299D3
CASE SR175B to SV340B
CASE TR170B to TV620B
JCB 215 to 300 & TELESKID 3TS-8W
JCB 215T to 325T
John Deere 318G to 332G
John Deere 317G to 333G
Kubota SSV65 & SSV75
Kubota SVL65 to SVL97-2
Takeuchi TL6R to TL12V2
Volvo MC80 to MC155
6000-40 Suitable Skid Steers as a guideline: All the following models are recommended for use in high flow.
Bobcat S850 & T850
CAT 272D3 & 299D3
CASE SV340B & TV620B
JCB 325T
John Deere 332G & 333G
Kubota SVL75 & SVL97-2
Takeuchi TL12V2
Volvo MC155[/vc_column_text][/vc_column][/vc_row][vc_row enable_first_overlay=”true” first_overlay_opacity=”25″ first_background_color=”#adadad” css=”.vc_custom_1674669333083{margin-top: 40px !important;margin-right: 10px !important;margin-left: 10px !important;}”][vc_column][vc_column_text css=”.vc_custom_1674669455225{margin-top: 40px !important;margin-bottom: 40px !important;}”]
Cone Splitter Specifications
Cone Models:
LSC200 – 8″ Diameter (200mm) – 12″ Tall (300mm) – 45lbs (cone only)
LSC250 – 10″ Diameter (250mm) – 15″ Tall (380mm) – 70lbs (cone only)
LSC300 – 12″ Diameter (300mm) – 19″ Tall (480mm) – 110lbs (cone only)
Cone Requirements
LSC200 – 8″ Diameter – Minimum Recommended Torque: 1,500ft-lbs – Ideal for mini skid steers, skid steers and mini excavators over 1.5 tons!
LSC250 – 10″ Diameter – Minimum Recommended Torque: 2,500ft-lbs – Ideal for skid steers & excavators over 4 tons!
LSC300 – 12″ Diameter – Minimum Recommended Torque: 4,000ft-lbs – Ideal for large track loaders with high flow auger drives and excavators over 5 tons!
All cones are provided with a bolt on adapter that bolts to the top of the cone through 6 bolts. All cones use the same bolt patterns/adapters.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=”.vc_custom_1674669447324{margin-top: 40px !important;}”]
Features
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_text_separator title=”Forged Hood & Ears”][vc_column_text]
Auger drives take up a lot of stress in certain areas, especially the hood and ears on top of the unit. These are forged pieces to endure the strain of drilling. Hood pins are also locked into place to ensure they never detach from the auger drive.
[/vc_column_text][vc_text_separator title=”Hose & Coupler Options”][vc_column_text]
All of our S4 auger drives (2” hex) come with 1/2″ high quality hoses and 1/2″ flat flace couplers included.
Larger auger drive units come with hoses to match the motor size of the unit.
6000-40 (2.5” hex) drive come with ¾” hoses
11000-45 to 18500-45 (3” square) drives come with 1” hoses.
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_text_separator title=”Non Dislodgement Shaft”][vc_column_text]
One unique feature of the auger torque range is the non-dislodgement shaft. The gearbox design of each Auger Torque drive ensures that the output shaft is locked in place and will NEVER fall out of the gearbox housing.
We offer a lifetime guarantee against the shaft falling
out of your auger drive.
[/vc_column_text][vc_text_separator title=”Gearbox Design”][vc_column_text]
Auger Torque manufactures their own planetary gearbox. The unique design features the non-dislodgement shaft design, and maximizes the final output torque of the unit at the operating hydraulic pressure. Manufacturing their own gearbox allows Auger Torque to maintain high quality and reliability that you depend on for your attachments.
[/vc_column_text][/vc_column][/vc_row][vc_row enable_first_overlay=”true” first_overlay_opacity=”25″ first_background_color=”#adadad”][vc_column][vc_column_text css=”.vc_custom_1674669429709{margin-top: 40px !important;margin-bottom: 40px !important;}”]
Warranty Information
We provide replacement warranty units for the coverage listed below.
All Auger Torque products are warranted for the periods below:
- Planetary Gearbox Components – 72 Months
- Hydraulic Motors – 36 Months
- All Other Parts / Products – 24 Months
For any additional information on the Auger Torque range, you can visit their website here![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://youtu.be/Hj2efhUm9Z4″ el_width=”70″ align=”center” css=”.vc_custom_1674669439574{margin-top: 40px !important;}”][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
